WS24 12 Pin Waterproof Connector Weipu Metal Threaded TQ Panel Mount High Voltage Power Cable for Automotive Bulkhead Solder LED 10A 14AWG Wire

The WEIPU WS24 series is an integral part of the ZBLZGP circular connector portfolio. This series offers a diverse range of pin configurations, spanning from 2 pin to 19 pin options. This wide selection enables it to be flexibly applied in different systems, whether it's for power transmission in industrial machinery or signal connection in complex control systems. Engineered to meet the demands of various industries, including industrial automation, robotics, and telecommunications.Electrical Specifications​Rated Current: Different pin configurations have distinct rated currents. For the 2 pin,3 pin,4 pin versions, it can reach 25A; the 9 pin, versions are rated at 5A/25A; the 10 pin, 12 pin versions are rated at 10A; and the 19 pin version is rated at 5A.​Rated Voltage: The rated voltage (AC.V.) for most pin configurations is 500V, except for the 19 pin versions, which are rated at 400V.​Withstanding Voltage: It can endure 1500V (AC.V) for 1 minute for most pin configurations, with the 19 pin versions capable of withstanding 1200V (AC.V) for 1 minute.​Contact Resistance: The contact resistance varies according to pin size and number. For example, the 2 pin,3 pin,4 pin versions have 1 mΩ, the 9 pin versions have 5 mΩ/1 mΩ, the 10 pin, 12 pin versions have 2.5 mΩ, and the 19 pin version has 5 mΩ.​Mechanical Specifications​Coupling: Threaded coupling for a secure and reliable connection.​Shell Material: Zinc alloy, providing high strength and corrosion resistance.​Insert Material: High - temperature - resistant PPS.​Contact Material: Brass (gold plated) for superior conductivity.​Termination: Solder and crimp termination options available.​Cable Outer Diameter Range: For different pin configurations, the wire specifications are as follows: <4 m㎡/11 awg for 2 pin,3 pin,4 pin; <4 m㎡/11 awg/<0.75 m㎡/18 awg for 9 pin; <2 m㎡/14 awg for 10 pin, 12 pin; <0.785 m㎡ / 18 awg for 19 pin. The cable outer diameter range generally falls between 8-12 mm.​Durability: It can withstand ≥1000 times of connection and disconnection, ensuring long term usability.​Environmental Specifications​Working Temperature: The connector can operate within a temperature range from - 55 °C to + 125 °C, making it suitable for a wide variety of environmental conditions, from extremely cold Arctic regions to hot desert areas.​Protection Level: IP67, offering reliable protection against dust and water immersion.

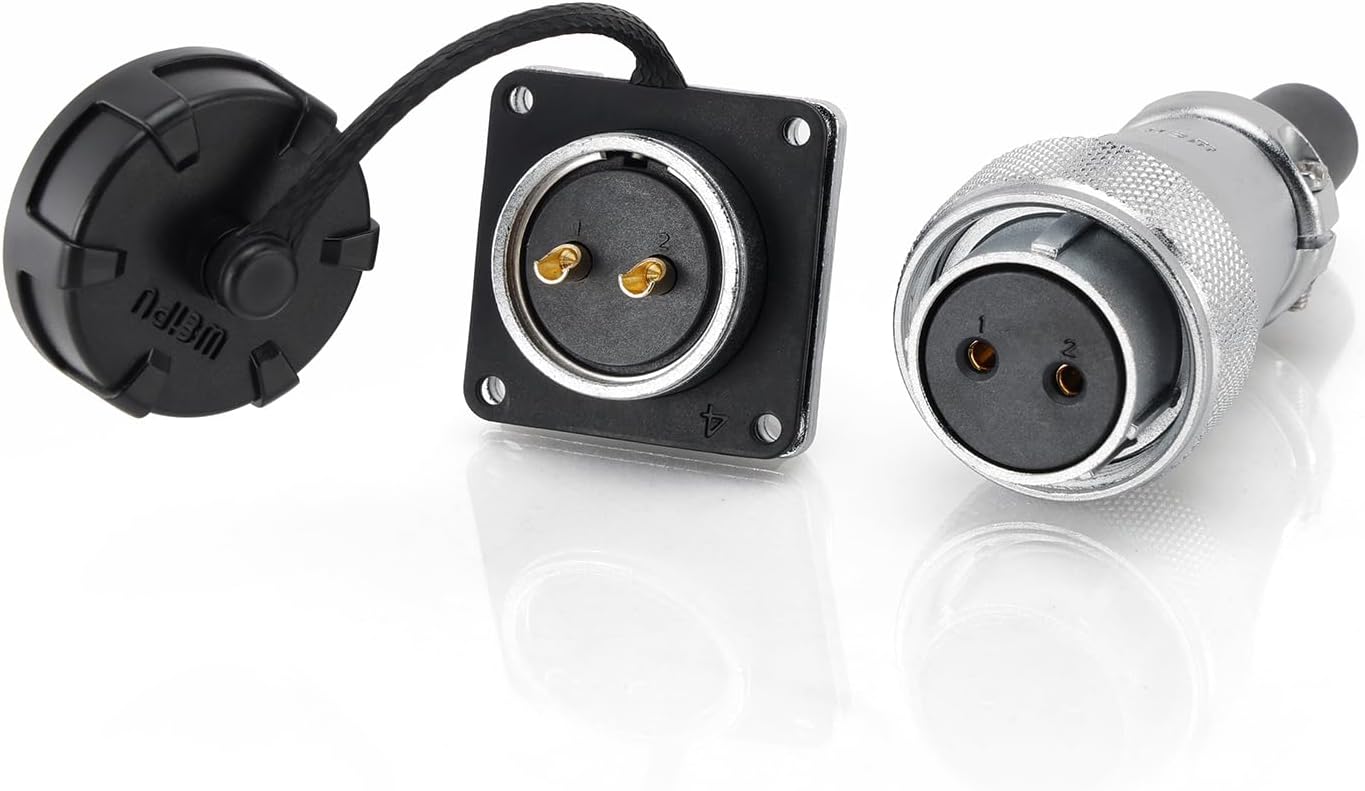

• WS24 12 Pin Aviation Connector, Bulkhead Electric Industrial Power Cable Plug Socket High Voltage Adapter Original External Thread WEIPU WS24 Square Connector.
• Rated Current / Voltage : 10A/ 500V;Withstand Voltage : AC 1500V;Contact diameter: Φ1.5x12;Wire specification: <2m㎡/14AWG;Contact resistance: 2.5mΩ;Insulation resistance: 2000mΩ.
• Termination:Solder：Φ1、Φ1.5、Φ2.5、Φ3.5、Φ5.5mm;Screw：Φ2.5、Φ3、Φ3.5mm;Crimp：Φ1、Φ1.5、Φ2.5、Φ3.5、Φ5.5、Φ10mm.Shell material:Zinc alloy with chrome plating.
• Aviation power connector has good electromagnetic and radio frequency interference protection. And it has waterproof function. Contact material:Brass with gold plating.Insert material:PPS, max temperature 260 ℃.
• Weipu WS24 Connector:Stable electrical performance, High strength, High temperature resistance,Explosion proof, Non-deformable, Anti-conrrosion, Compression resistrance;Threaded coupling is easy to operate and install;Multi-scene use with high transmission efficiency.
