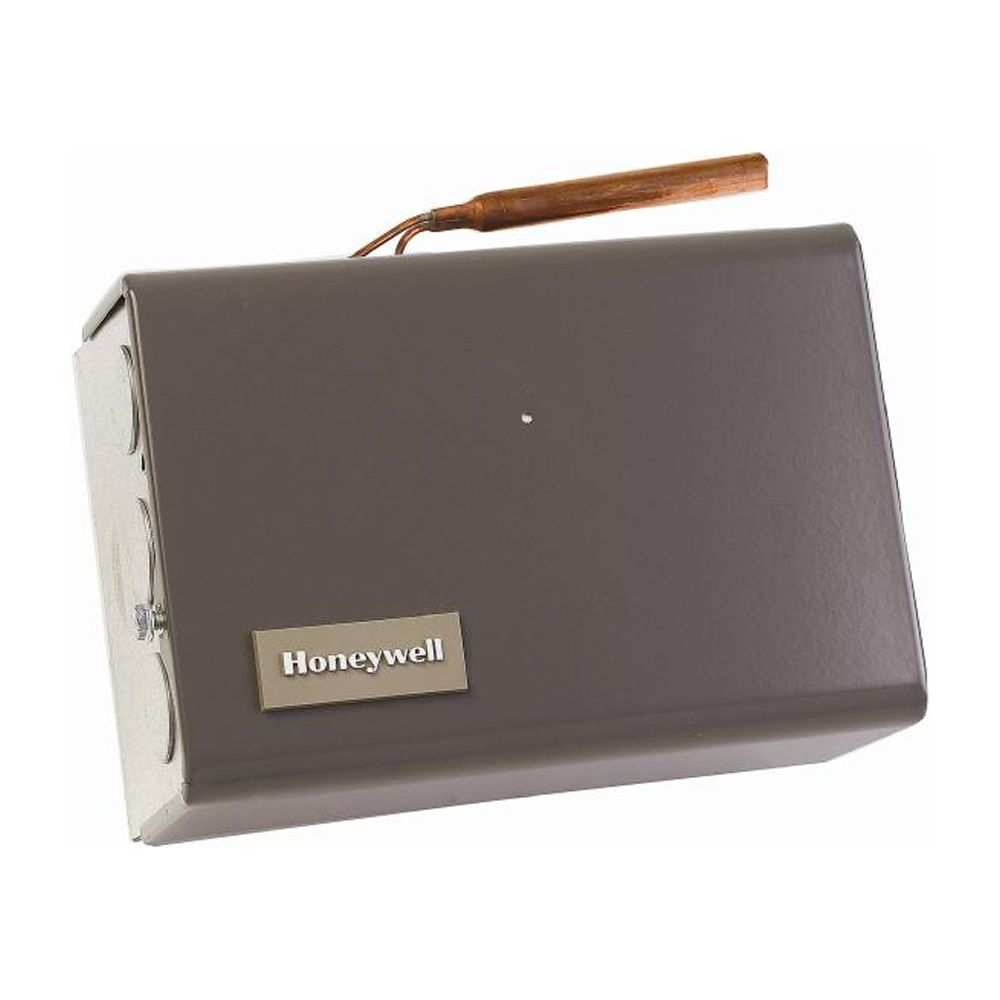

(Price/Each)Honeywell L8124C1003 Triple Aquastat Relay, 120V Burner Control, Horizontal Mount Less Well

Price is for each.<br><br>Manufacturer Part Number: L8124C1003<br><br>HONL8124C1003 Triple Aquastat Relay 120v Burner Control Horizontal Mount Less Well<br><br>Part Description:<br><ul><li>Aquastat Relay</li><li> Type 3/8 Inch Diameter x 2-7/8 Inch Length Sensing Element, Direct Horizontal Well Immersion, Triple, High Limit</li><li> Temperature Range 130 to 240 Deg F (High Limit), 110 to 220 Deg F (Low Limit)</li><li> Maximum Temperature Rating 150 Deg F (Switch), 265 Deg F (Sensing Element)</li><li> Contact Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC Full Load, 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC Locked Rotor (Burner/Circulator)</li><li> Contact Configuration SPST</li><li> Connection Type 1/2 Inch Conduit, Quick Connect/Screw</li><li> Application Hydronic Heating System</li><li> Approval UL, CSA</li><li> Overall Dimension 6-1/8 Inch Width x 3-1/16 Inch Depth x 4-3/8 Inch Height</li><li> Differential Temperature Rating 10 Deg F Fixed (High Limit), 10 to 25 Deg F Adjustable (Low Limit)</li><li> Pressure Rating 200 PSI (Outside of Immersion Well), 100 PSI (Capsule if Inserted Directly)</li><li> Insulation Depth 1-1/2 Inch</li><li> Humidity Range 0 to 95 Percent Relative, Non-Condensing</li></ul><br><br><h2>Features / Benefits</h2><ul><li>Immersion Type Controllers that Combine High Limit Protection with Low Limit and Circulator Control in Forced Hydronic Heating Systems, Including Domestic Hot Water Service</li><li> Provide Multi-Zone Control by Using a Separate Circulator and R845 Relay for Each Zone</li><li> Include Diaphragm Power Head and Micro Switch Assembly that Respond to Temperature Changes in Boiler Water, Mount Directly to Boiler</li><li> Select Models Include Large Transformers and Extra Terminals for Supplying Power to Low Voltage Zone Valves</li><li> Require 24 Volt AC Thermostat with Heat Anticipator Set at 0.2 Amp (Plus Current Draw of Gas Valve on L8124E)</li><li> Tradeline Models Include Tube of Heat Conductive Compound and Range Stops</li></ul><br>
